CVD diamond films are among the most advanced materials for thermal management in high-power and high-density electronics. Their value as heat spreaders comes from a unique combination of physical and chemical properties that few materials can match.

Key Advantages of CVD Diamond Heat Spreaders

1. Exceptional Thermal Conductivity

CVD diamond exhibits thermal conductivity in the range of 1200–2200 W/m·K, exceeding copper (~400 W/m·K) and even high-end graphite. Heat transport is dominated by lattice vibrations (phonons), making it highly efficient and stable across a wide temperature range.

This is governed by the phonon transport mechanism in the diamond lattice.

2. Electrical Insulation

Unlike metals, diamond is electrically insulating (wide bandgap ~5.5 eV), which allows:

• Direct integration with semiconductor devices

• Elimination of additional insulating layers

• Reduced parasitic capacitance

3. Low Thermal Expansion

Diamond has a very low coefficient of thermal expansion (~1 ppm/K), which is close to:

• Silicon

• Gallium Nitride

 This minimizes thermal stress and improves reliability in power cycling environments.

4. High Thermal Stability & Chemical Inertness

• Stable up to ~700–800°C in air

• Resistant to corrosion and radiation

• Ideal for harsh environments (space, nuclear, plasma systems)

5. High Breakdown Strength

Useful in high-voltage applications where insulation and thermal dissipation must coexist.

6. Tailorable via Doping or Composite Integration

• Can be doped (e.g., boron-doped diamond) for semi-conductive behavior

• Can be metallized (Ti, Mo, W layers) for better interface bonding

 Typical Applications

1. Power Electronics

Used as heat spreaders or substrates for:

• Gallium Nitride (GaN HEMTs)

• Silicon Carbide (SiC MOSFETs)

 Enables higher power density, reduced junction temperature, and longer device lifetime.

2. RF & Microwave Devices

Critical in high-frequency, high-power systems:

• Radar modules

• Satellite communications

• 5G/6G base stations

Diamond improves thermal handling in GaN-on-diamond architectures.

3. Laser Diodes & Photonics

• High-power laser diode heat sinks

• Optical windows (due to transparency + thermal performance)

Used in:

• Industrial lasers

• Medical lasers

• Defense systems

4. Advanced Packaging & 3D Integration

• Heat spreaders in chiplets and stacked ICs

• Replacement for Cu/Mo or AlN substrates

Especially important as power densities exceed 1 kW/cm².

5. Aerospace & Defense

• Thermal management in satellites and avionics

• Radiation-resistant electronics

• High-power microwave tubes (e.g., gyrotrons)

6. Emerging Applications

• AI accelerators and high-performance computing (HPC)

• Electric vehicle power modules

• Fusion and EUV lithography systems

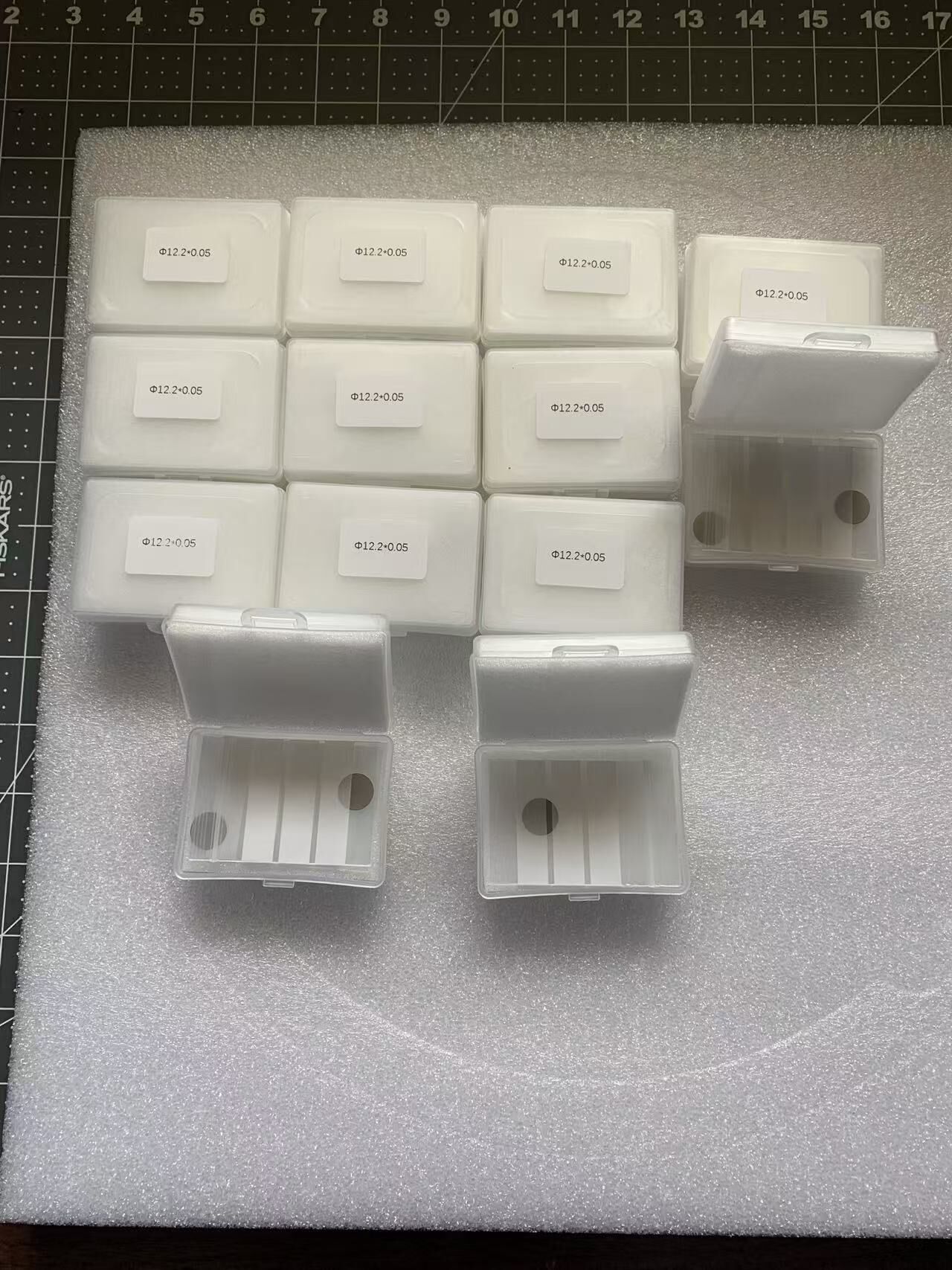

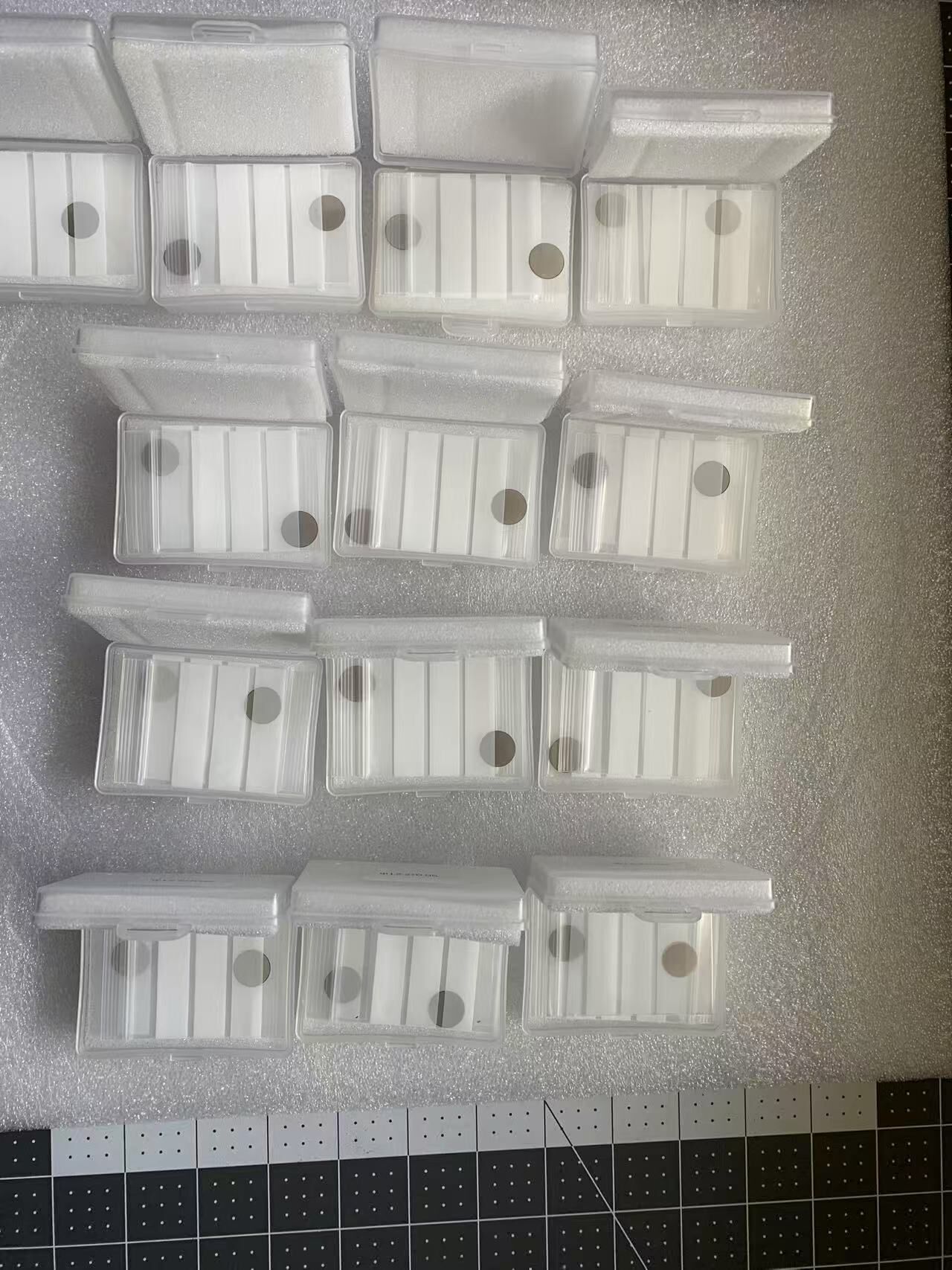

SEMIXICON DIASEMI standard diamond films models in bulk supply
