Home > News > Semixicon WIT-H240-01 Thermal Porous Vacuum Wafer Chuck Table

12-28-2020

Semixicon WIT-H240-01 Thermal Porous Vacuum Wafer Chuck Table

Semixicon WIT-H240-01 Thermal Porous Vacuum Wafer Chuck Table Key Specification

Material: Stainless Steel

Adsorption area = heated area : 240*240mm

Top surface planarity: 10um max. @ room temp.

Pressure: -0.7Bar to 6.0Bar

Power requirement: maximum 80A @ 220VAC (1.8kw)

Max temp. 200°C ±2.0%)

Working temp. 180°C ±1.5%)

Temp stability: 0.5°C Heating rate: 10°C /min

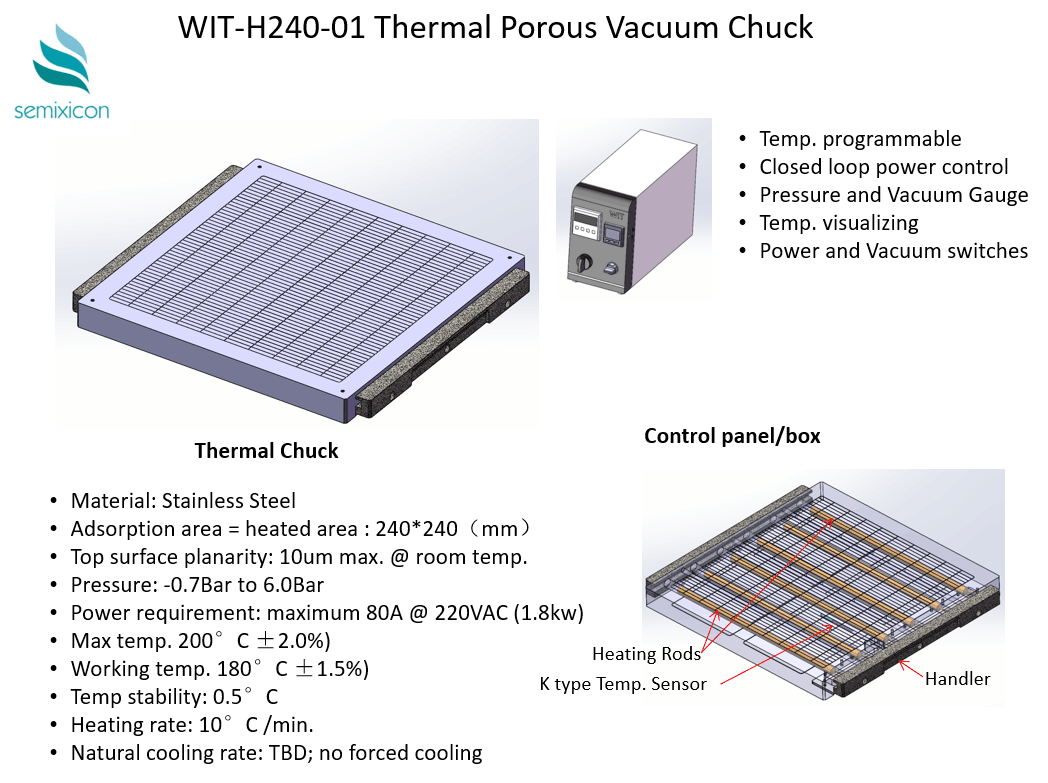

Thermal Chuck.png
